# 원

## 원 그리기

원 도구를 사용하여 공간 또는 다른 객체에 원을 그릴 수 있습니다.

키보드 단축키: C

![](/files/ZRfI98AmDX8Hrgv65Hev)

원을 그리려면 먼저 중심점을 선택한 다음, 원 반지름을 지정합니다. 그러면 원이 자동으로 면이 됩니다.

![](/files/6AFjTZkH7e18s07PPOgw)

![](/files/8U0ejkSZLqRNkA5mgKOj)

## 원 편집

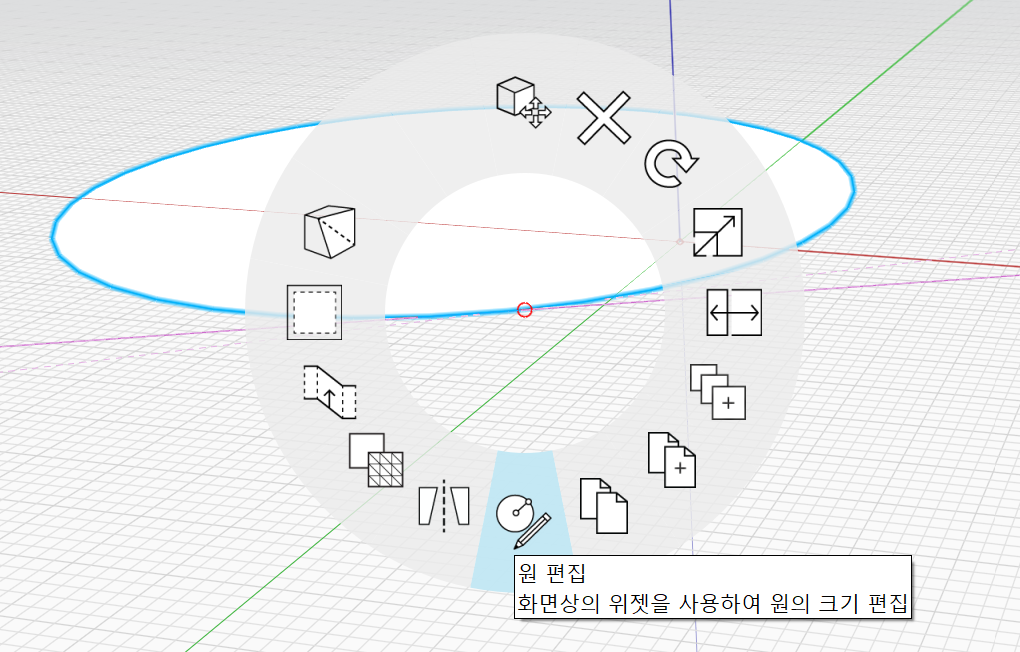

이미 배치한 원을 마우스 오른쪽 버튼으로 클릭하고 맨 아래에서 원 편집을 선택하여 수정할 수도 있습니다.

<figure><img src="/files/GmDS4dcBABeppfbMHRzN" alt=""><figcaption></figcaption></figure>

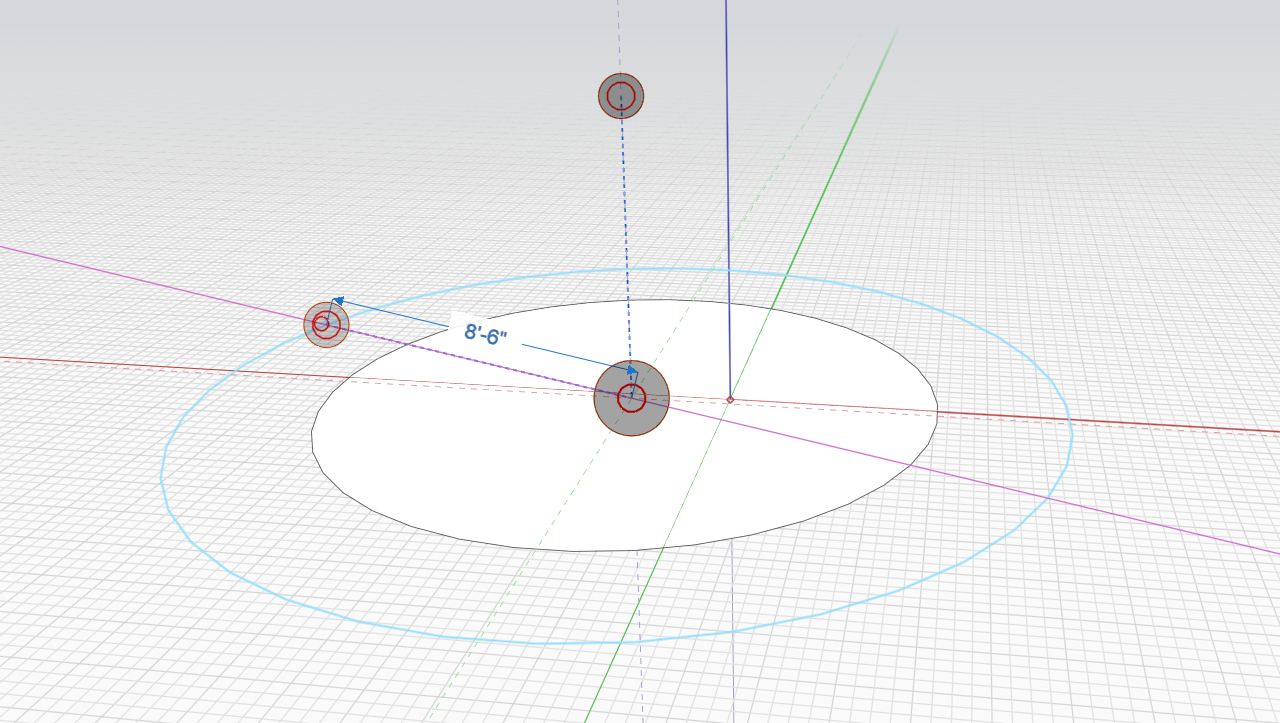

원 편집 그립이 나타나며, 원의 크기나 방향을 변경할 수 있습니다. 편집 중에 새 원이 윤곽으로 나타납니다.

다음과 같은 몇 가지 그립이 나타납니다.

* 중심 그립은 원의 원점을 제어합니다
* 모서리를 따라 있는 그립은 원의 반지름을 제어합니다
* 상단의 그립은 원의 법선/방향을 제어합니다

<figure><img src="/files/zg0c8zoYsriQpYQMiMEe" alt=""><figcaption></figcaption></figure>

편집을 완료하려면 빈 공간을 클릭하거나 Esc 키를 눌러 도구를 종료합니다. 새 원이 현재 원을 대치합니다.


---
