# 工具栏和选项板

## 工具栏

标准工具栏默认处于启用状态，但分为以下几个部分。可以选择使用“窗口”菜单启用、禁用和重新排列各个部分。

### 文件

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-8498db2b477f88be0d6495381113cc2466d4b2a1%2Ffile_icons.png?alt=media)

1. **“文件”菜单**，其中包括文件操作（如“打开”、“保存”和“输出”）
2. **撤消**上次所做更改
3. **重做**已撤消的更改

### 几何图形

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-faf3292e774ca9f50089607199b5b4e24880d5c4%2Fgeometry_icons%20\(1\).png?alt=media)

1. [**选择**](https://windows.help.formit.autodesk.com/tool-library/select-edge-face-or-object)和区域选择过滤器
2. [**测量**](/zh-cn/tool-library/measure-tool.md)距离和[**测量角度**](/zh-cn/tool-library/measure-angle-tool.md)工具
3. [**剖切平面**](/zh-cn/tool-library/section-planes.md)
4. [**三维草图绘制工具**](/zh-cn/formit-primer/part-i/3d-sketching.md)
5. [**基本体**](/zh-cn/tool-library/place-primitive-object.md)工具栏
6. [**高级几何图形**](/zh-cn/formit-introduction/tool-bars.md)工具栏，其中包括“连接”、“切割”、“扫掠”、“放样”和“抽壳”
7. [**组**](/zh-cn/tool-library/groups.md)工具栏

### 设置

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-5da4aba4ae0f7e2acb1efb556eaaca9db0c6e02f%2Fsettings_icons.png?alt=media)

1. **“设置”** 菜单，用于 UI 和应用程序设置。
2. **触摸模式**，用于在触摸屏设备上启用交互。
3. [**协作**](/zh-cn/tool-library/collaboration.md)，用于管理与多个用户的协作任务。
4. **Autodesk Account 登录。**
5. **“信息”** 菜单，用于显示帮助和链接。

### 设计

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-c6ff2bb01bbffc82f65a124aff0619cb2a8fe2e8%2Fdesign_icons.png?alt=media)

1. [**位置**](/zh-cn/tool-library/setting-location.md)
2. [**日光、阴影和日光分析**](/zh-cn/tool-library/solar-analysis.md)
3. [**能量分析**](/zh-cn/tool-library/energy-analysis.md)

## 选项板

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-5cf6146bf94cfe7866794bd6ca7efb2971790f88%2Fproperties%20\(1\).png?alt=media) [**特性**](https://windows.help.formit.autodesk.com/tool-library/properties)

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-8eb0c99e5f84aa19ed9b141dc733ecc0213e96bf%2Flayers.png?alt=media) [**图层**](/zh-cn/tool-library/layers.md)

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-1a6c55c4542863f3191034c69307725df1e1f3cc%2Fscenes.png?alt=media) [**场景**](/zh-cn/tool-library/scenes.md)

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-ff9e00f2e685c52a1687596d148ed21c44a48071%2Fvisual_styles.png?alt=media) [**视觉样式**](/zh-cn/tool-library/visual-styles.md)

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-f7ad8df1119c972ac5175c0da5cefd660af09aea%2Fbranch_tree.png?alt=media) [**组树**](/zh-cn/tool-library/groups-tree.md)

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-996ac9307e52fc7316eda05bcc07c6fd088866cd%2Fdynamo.png?alt=media) [**Dynamo**](/zh-cn/tool-library/dynamo.md)

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-ecd56b4e7e4bc3368ee24f8431f44b5fc6ca9a35%2Flevels.png?alt=media) [**标高**](/zh-cn/tool-library/levels-and-area.md)

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-9ba2228e5a5caa40841c579585234712d12a1b82%2Fcontent_library.png?alt=media) [**内容库**](/zh-cn/tool-library/content-library.md)

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-2a3083dfc8a020060e1679c67ea10f75102b1c76%2Fundo.png?alt=media) [**撤消管理器**](https://github.com/FormIt3D/autodesk-formit-360-windows-help/tree/c377e7b8a3b8e43e684321d0b7de867608d317a3/tool-library/undo-manager.md)

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-34fdb615b57dc0b4fa9e157de2173409073a76e1%2Fplugin_img.png?alt=media) [**插件**](https://windows.help.formit.autodesk.com/tool-library/plug-ins)

### 显示/隐藏所有选项板

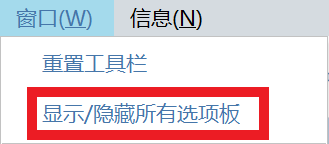

在 FormIt 2023 及更高版本中，通过切换“窗口”菜单中的“显示/隐藏所有选项板”，可以最小化/恢复选项板：

<figure><img src="https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-68a9750909d794f11910cd0debd3f7525f248d9b%2FShowHidePalette.png?alt=media" alt=""><figcaption></figcaption></figure>

## 上下文菜单

在三维画布中的图元上单击鼠标右键，以显示该类型几何图形的命令和修改菜单。将光标悬停在图标上，可查看其名称。

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-6dfe8a6ac7f872cbba895b5ff8cefebf91184425%2Fwheel_img.png?alt=media)

## 键盘快捷键

在“编辑”>“首选项”>“快捷键”中，自定义 FormIt [**键盘快捷键**](/zh-cn/appendix/keyboard-shortcuts.md)。

![](https://3938562663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC2d4N7VJ5cPBb6LvhH2k%2Fuploads%2Fgit-blob-f706ddd7f91837508e5ccdfb802eaa5f58f33101%2Fshortcuts_img%20\(1\).png?alt=media)
