# 布尔交集

可以使用“相交工具”剪切两个对象或组的交集。有两种方法可以访问“相交”工具：

## 工具栏中的相交

键盘：I G

![](/files/Wf3Qz7qwKcQDBeGacO6L)

运行“相交”命令，然后按照屏幕左上角的模式说明进行操作

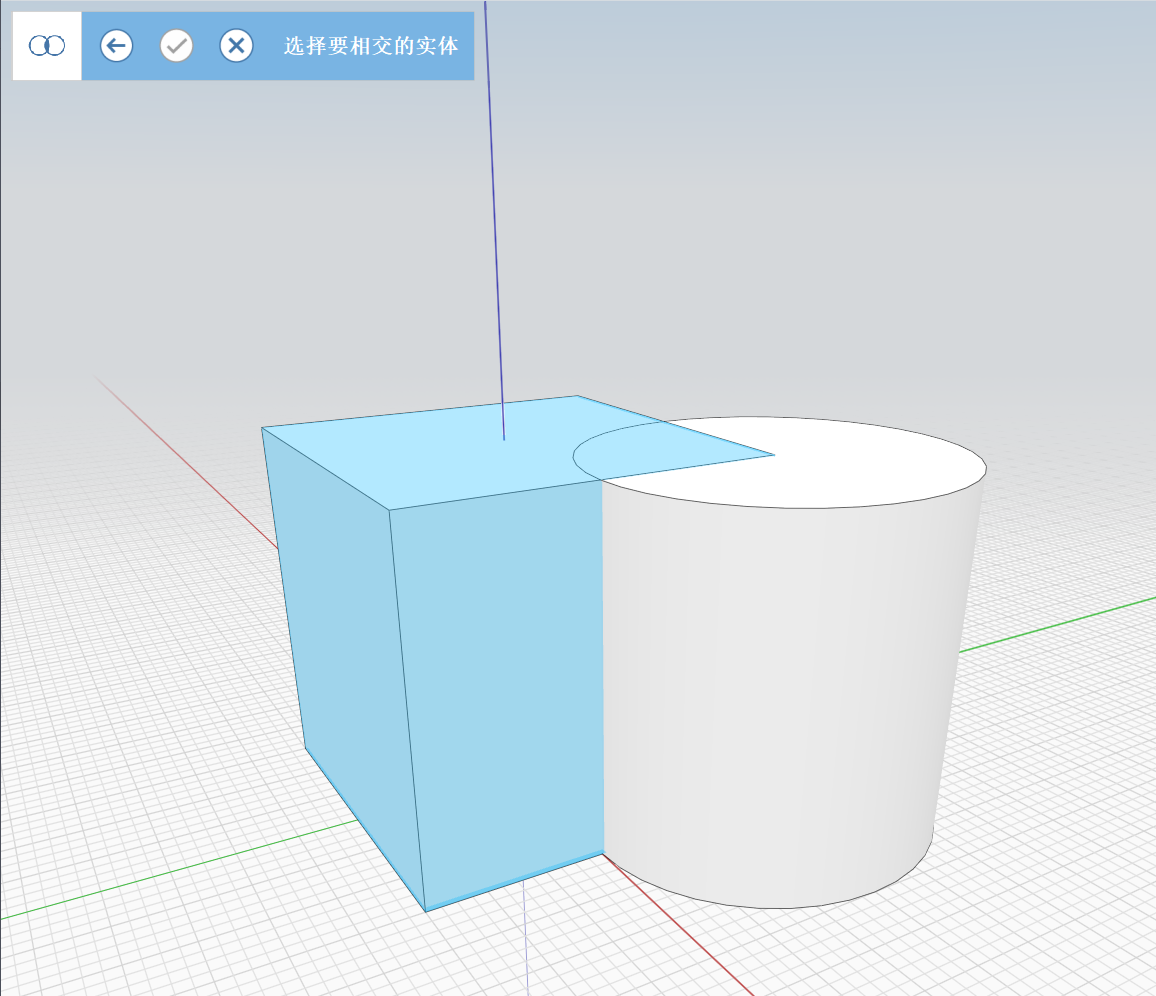

单击以选择要切割的对象：

<figure><img src="/files/ly2BLJ8pEGrlraqbMtx1" alt=""><figcaption></figcaption></figure>

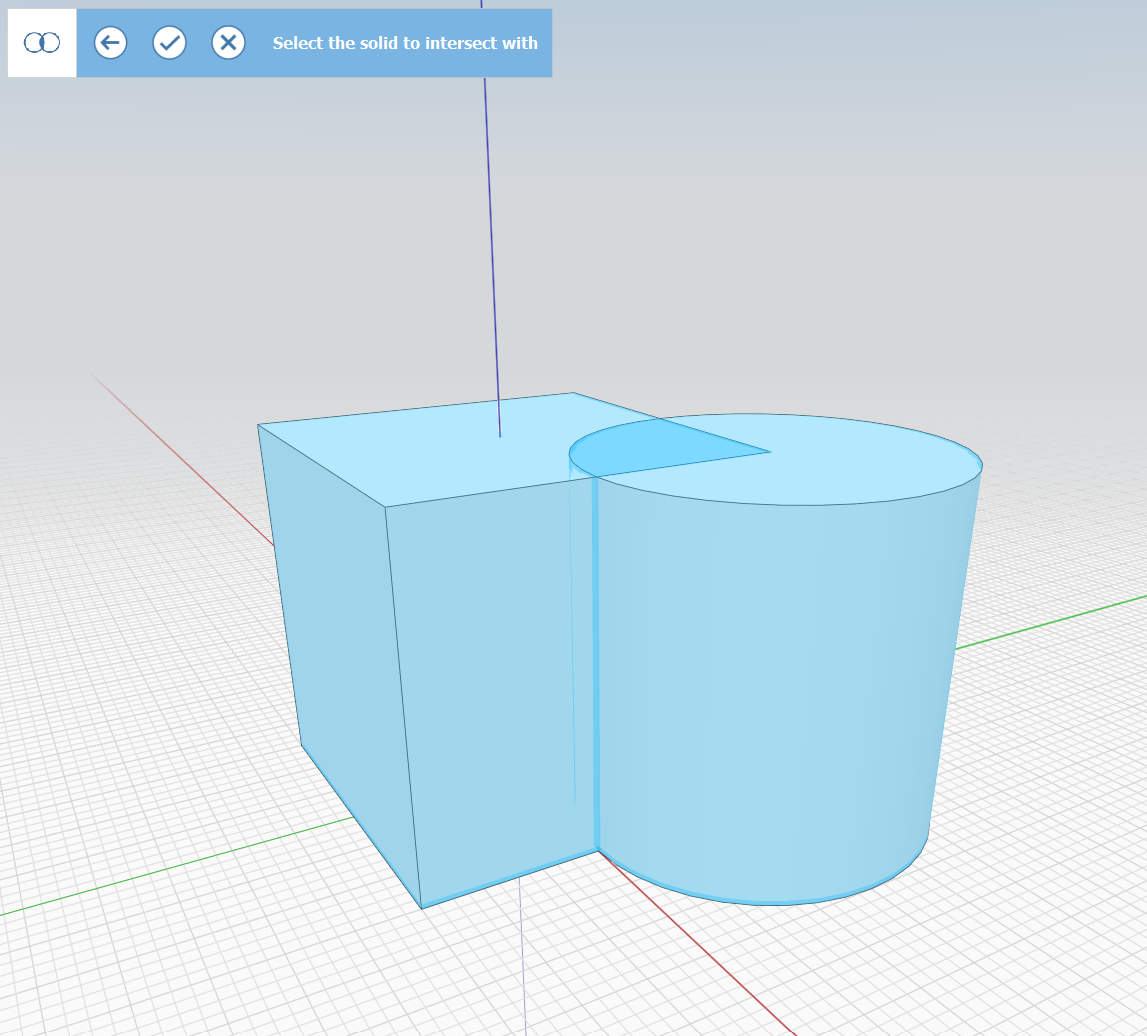

单击以选择要与之相交的对象或组：

<figure><img src="/files/dr2TzS2qSXf6miuy1r4V" alt=""><figcaption></figcaption></figure>

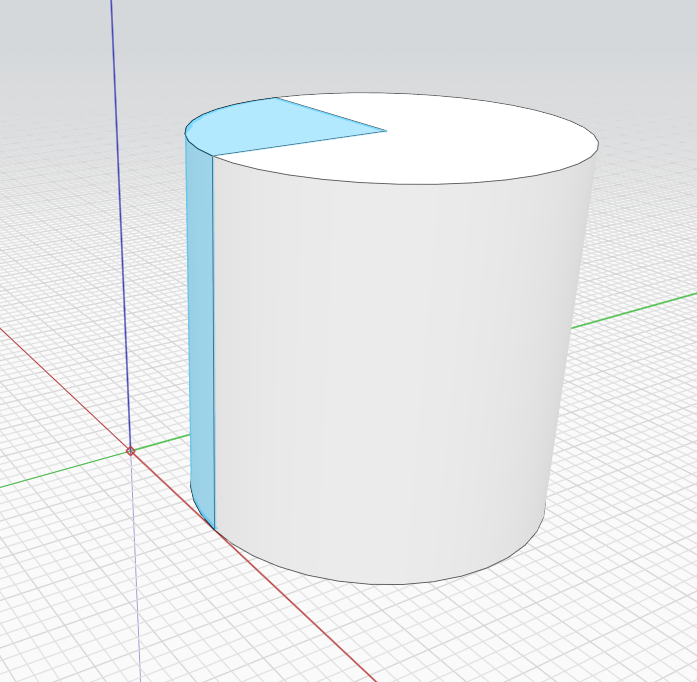

单击复选标记以完成命令。第一个对象将替换为选定几何图形的交集。可以删除不需要的对象！

<figure><img src="/files/tu3EIavafK81q7T8kKLF" alt=""><figcaption></figcaption></figure>

## 上下文菜单中的相交

1. 双击以选择要切割的对象。（单击以选择组）
2. 按住 **CTRL 键**的同时，双击要相交的重叠对象。

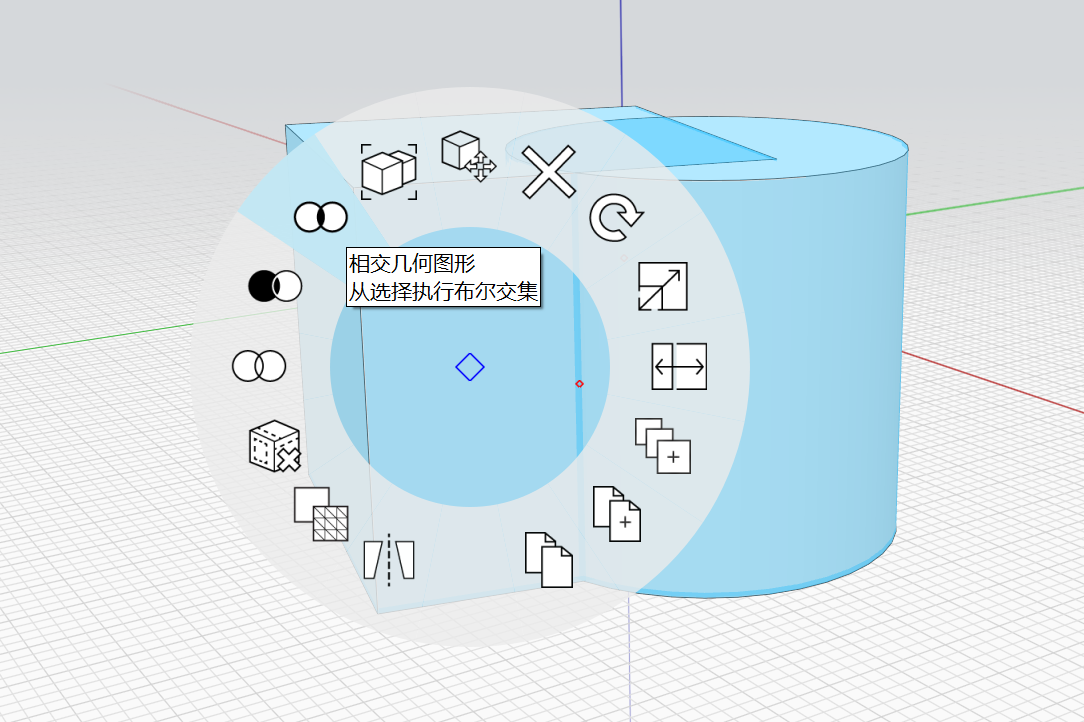

3. 在要切割的对象上单击鼠标右键，然后在上下文菜单中选择 **“相交”工具**。

   <figure><img src="/files/00ZRlNECQRpBA18gqMue" alt=""><figcaption></figcaption></figure>


---
