Creating an Add-In

PreviousTesting a Combined HTML Panel and Toolbar PluginNextInvoking Plugins and API from Dynamo

Last updated 3 years ago

An Add-In is a plugin that also loads DLLs that expose new JavaScript APIs.

Download FormIt API

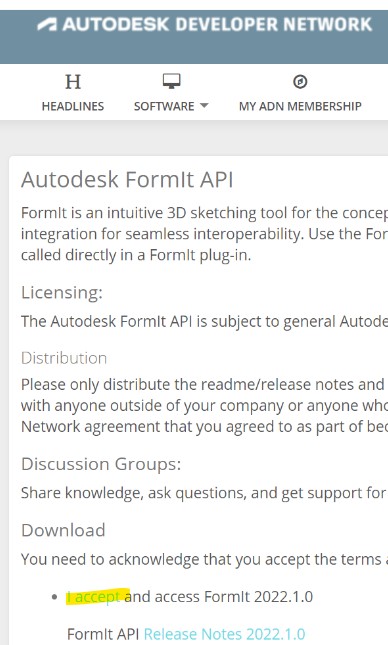

To build DLLs that support FormIt, the FormIt API is needed. The FormIt API can be downloaded from the . A login is needed to access the download.

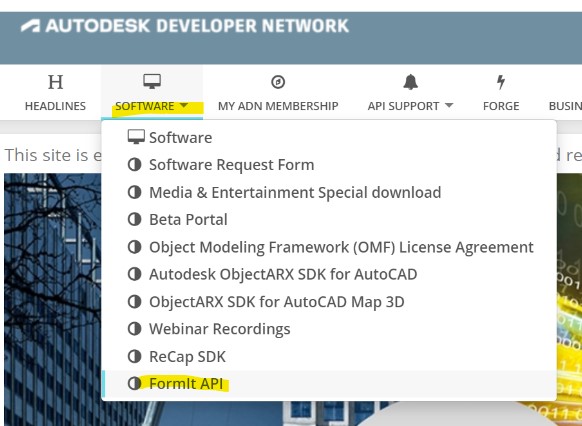

Once logged in, the FormIt API is available under SOFTWARE.

An add-in has the following structure:

            // FormIt looks for REGISTERAPIMETHODS to load new JS APIs
            REGISTERAPIMETHODS
            {
                // Declare new namespace for the new JS APIs
                REGISTERNAMESPACE("HelloDLL")
                // Create a JS API with no arguments
                APIMETHOD(HelloDLL, API1, "") {}
                // Create a JS API with 1 argument
                APIMETHOD(HelloDLL, API2, "arg1") {}
                // Create a JS API with 2 argument
                APIMETHOD(HelloDLL, API3, "arg1, arg2") {}
                ...
                ...
            }


To get the arguements into C++ variables use SCRIPTCONVERTER-

            // Create a JS API with 2 argument
            APIMETHOD(HelloDLL, API3, "arg1, arg2")
            {
                // NOTE: The arg names above ^^^^ have to match the args in the macros below.
                // arg1 expects a bool
                SCRIPTCONVERTER(bool, arg1);
                // arg2 expects an int
                SCRIPTCONVERTER(int, arg2);
                return JSON_UNDEFINED;
            }


Either JSON_UNDEFINED or any json object can be returned. Use to_json to convert your C++ variable to json

            // Create a JS API with 2 argument
            APIMETHOD(HelloDLL, API3, "arg1, arg2")
            {
                // NOTE: The arg names above ^^^^ have to match the args in the macros below.
                // arg1 expects a bool
                SCRIPTCONVERTER(bool, arg1);
                // arg2 expects an int
                SCRIPTCONVERTER(int, arg2);

                std::string myValue = "Test";
                return to_json(myValue);
            }

        "DLLs" : ["PLUGINLOCATION/MyClass.dll", "PLUGINLOCATION/HelloDLL.dll"]


An Add-In has access to the and .

Once the DLL is defining all the needed JS APIs, the plugin must tell FormIt what DLLs need loaded. This is done in the .

is a working example that explains how to make an Add-In.

is a working example that explains how to make an Add-In with the .

FormIt API
FormIt Modeling Kernel C++ API
manifest
HelloAddIn
HelloWSMAddIn
FormIt Modeling Kernel C++ API
Autdesk Developers Network
