Cover, Sweep, Loft

Enclose open edges, make geometry changes along a path of edges, and connect multiple profiles or edges.

To close a series of faces

  1. 1.
    From the Advanced Geometry Tools menu in the action bar, click the Cover tool.
    ​
  2. 2.

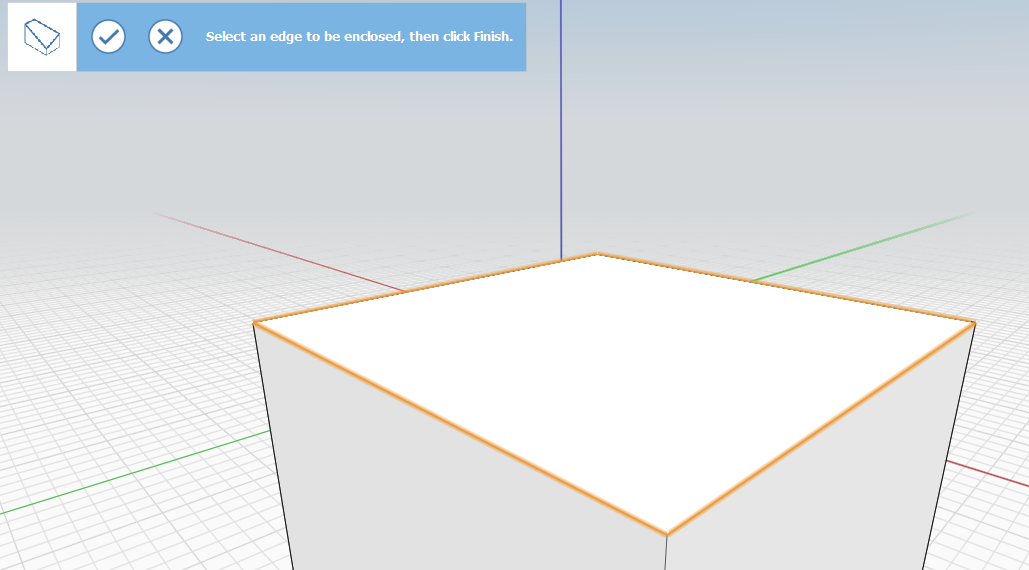

    Click the edges of the object you want to cover.
    ​
    ​
    1. 1.

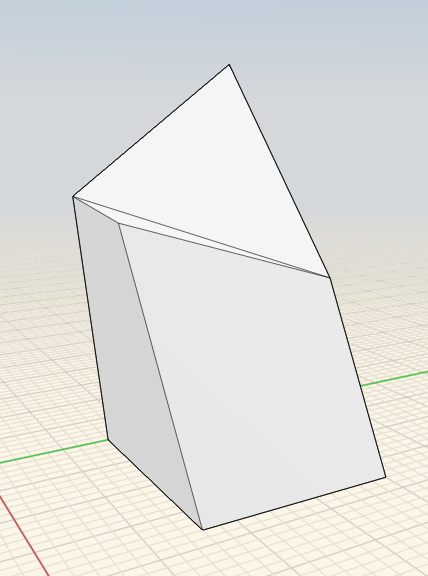

      Click Finish
      ​
      ​
      ​

To sweep geometry along a path

  1. 1.
    Use a line to mark the face of an object that you want to cut.
    ​
  2. 2.
    Click the sweep tool icon.
    ​
  3. 3.
    Select the face you marked earlier.
    ![](../.gitbook/assets/sweep2.png)
    1. 1.
      Select the edge you want to cut.
      ​
      ​
    2. 2.

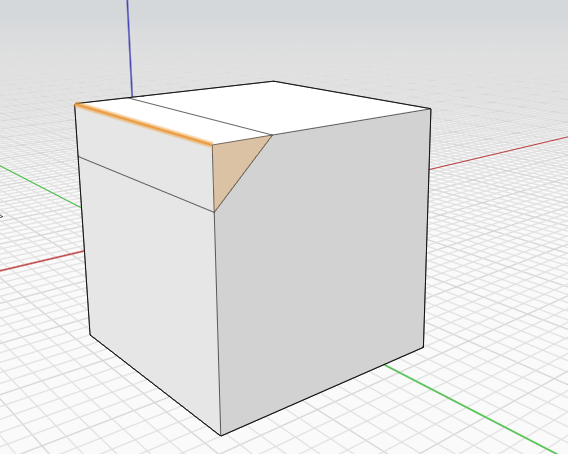

      Click the Finish icon. The original object is modified along the sweep path.
      ​
      ​

To loft multiple profiles or edges

  1. 1.
    From the Advanced Geometry Tools menu in the Action bar, click the Loft tool.
    ​
  2. 2.

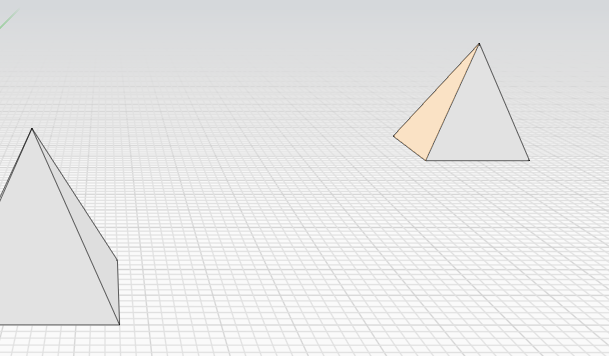

    Select the face or edges you want to loft on the first object.
    ​
    ​
  3. 3.

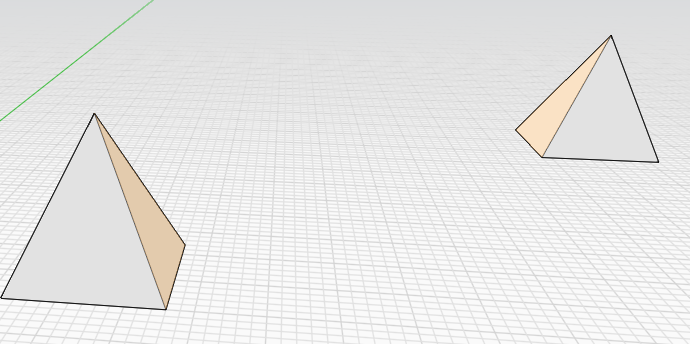

    Select the face or edges you want to loft on the second object. Repeat this step for additional objects.
    ​
    ​
  4. 4.

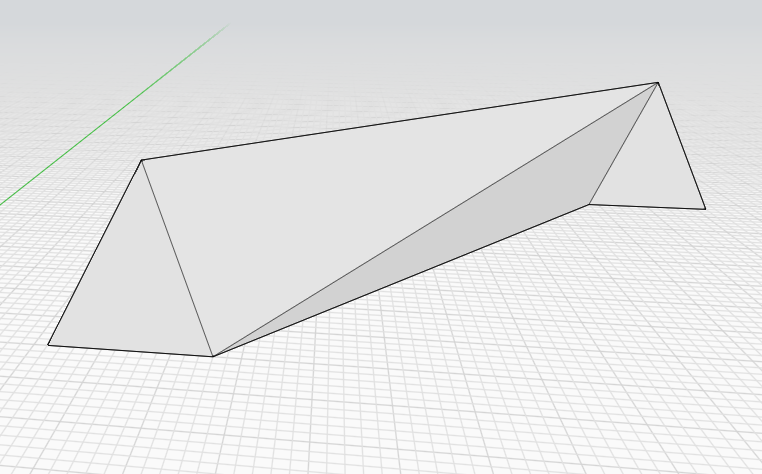

    Click the Finish icon.
    ​
    ​
    ​
